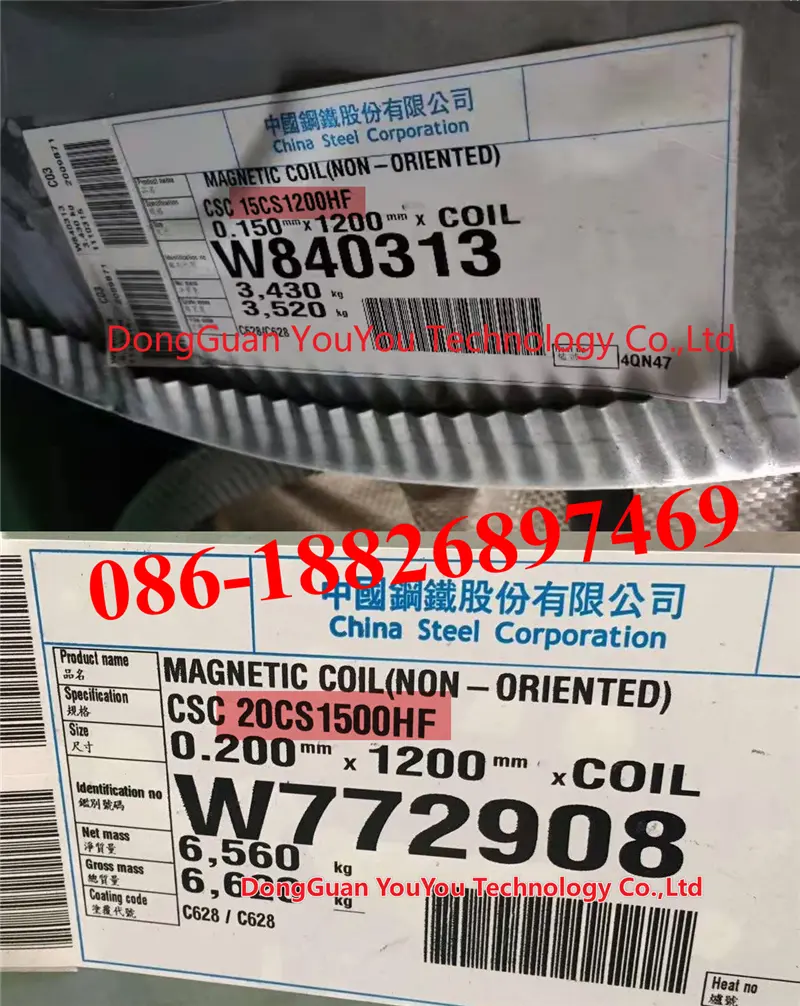

ChinaSteel 15CS1200HF / 20CS1500HF

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf

Product characteristics

Non-directional electromagnetic steel coil has uniform magnetogas properties in all directions of the steel coil, and contains the following main characteristics: iron loss value, magnetic flux density, punching, weldability, flatness, thickness difference and other quality strict requirements, for the manufacture of motors, transformers indispensable materials.

Application

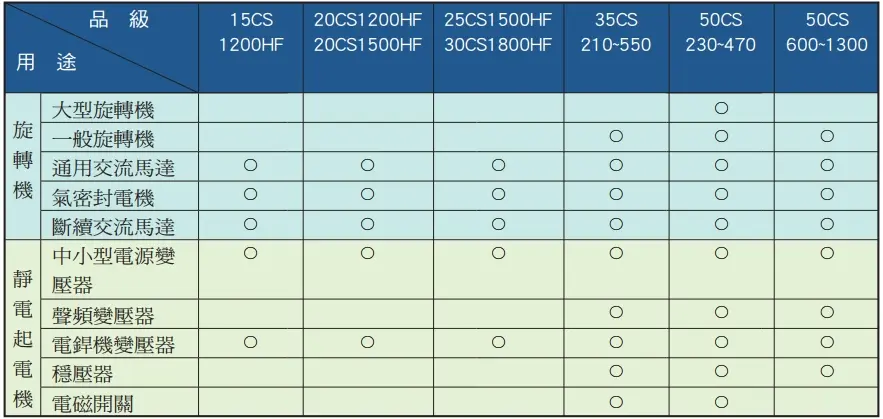

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf primary use

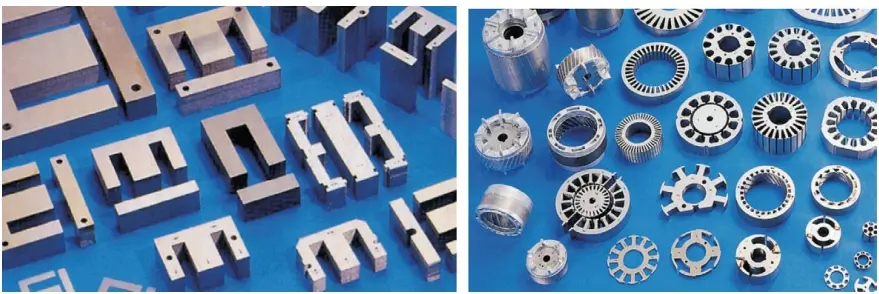

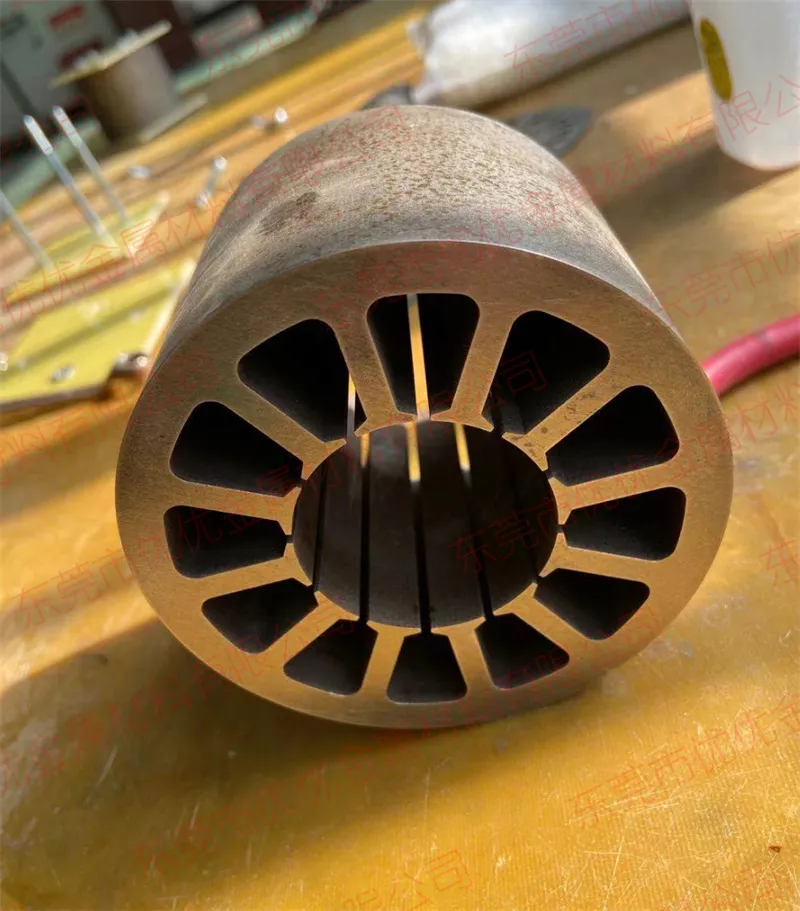

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf motor stator

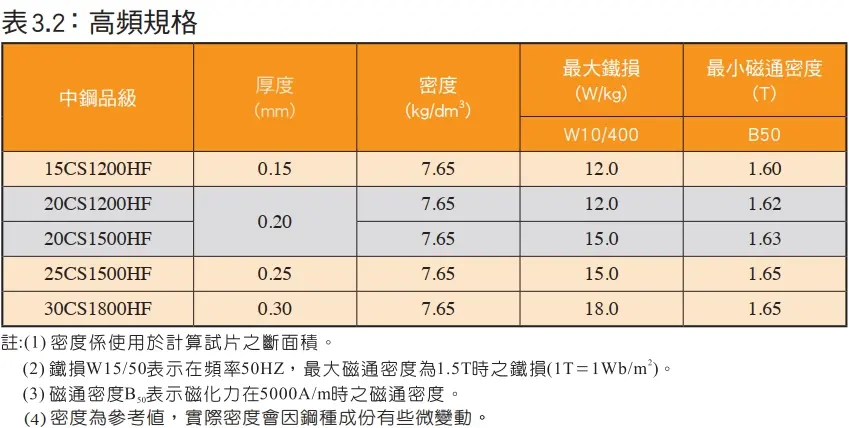

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf high frequency characteristic

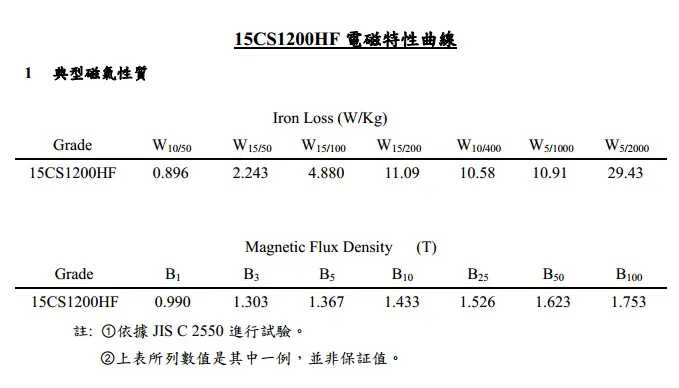

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf typical magnetic properties

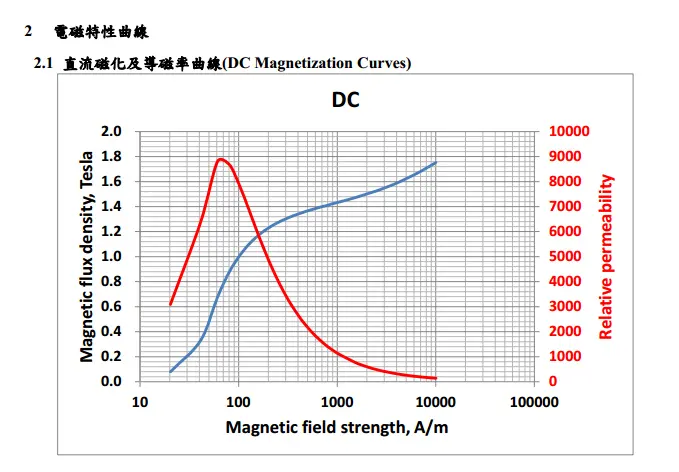

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf dc magnetization curves

DC Magnetization Curves

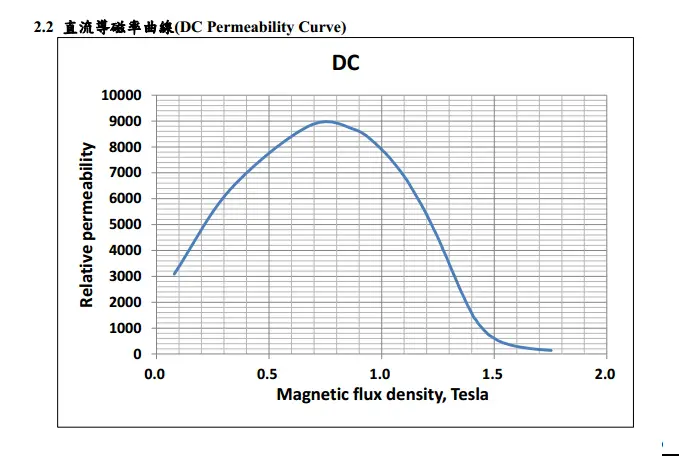

chiansteel 15cs1200hf 20cs1200hf 20cs1500hfdc permeability curve

DC Permeability Curve

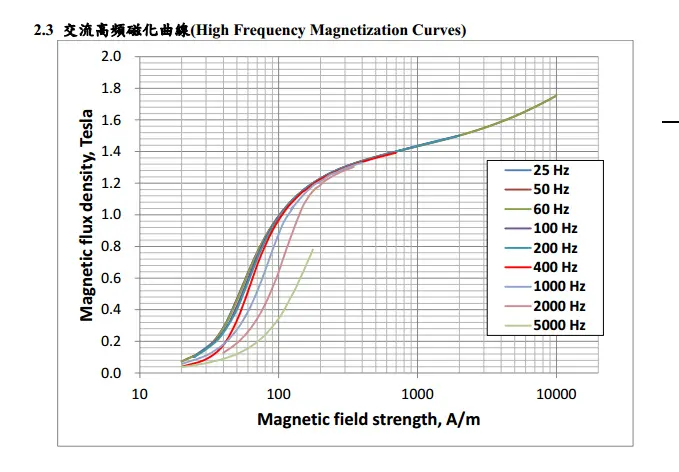

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf high frequency magnetization curves

High Frequency Magnetization Curves

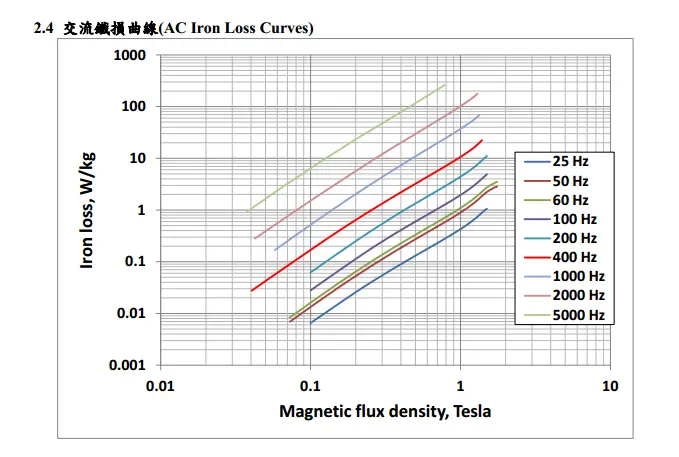

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf ac iron loss curves

AC Iron Loss Curves

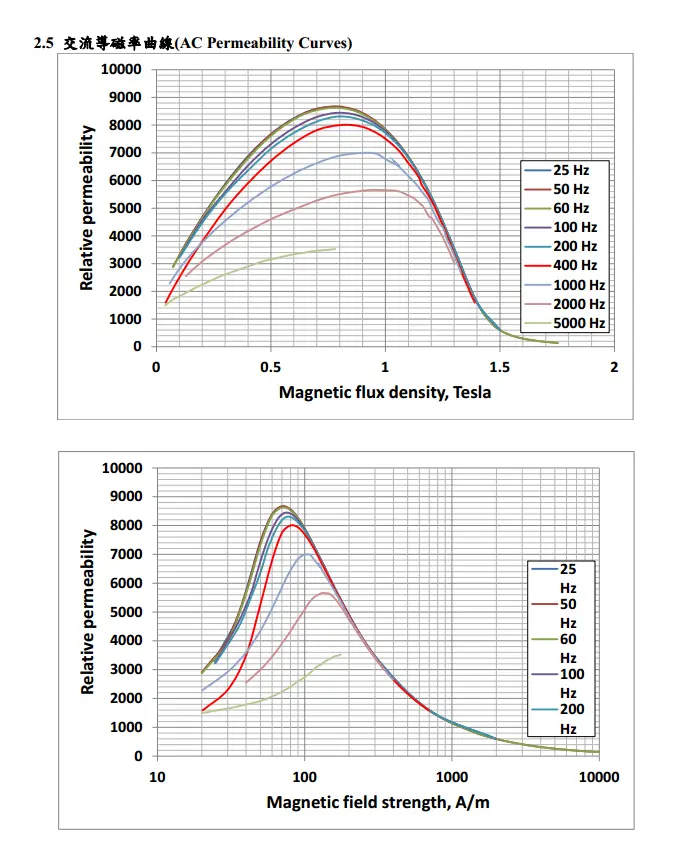

chiansteel 15cs1200hf 20cs1200hf 20cs1500hf ac permeability curves

AC Permeability Curves

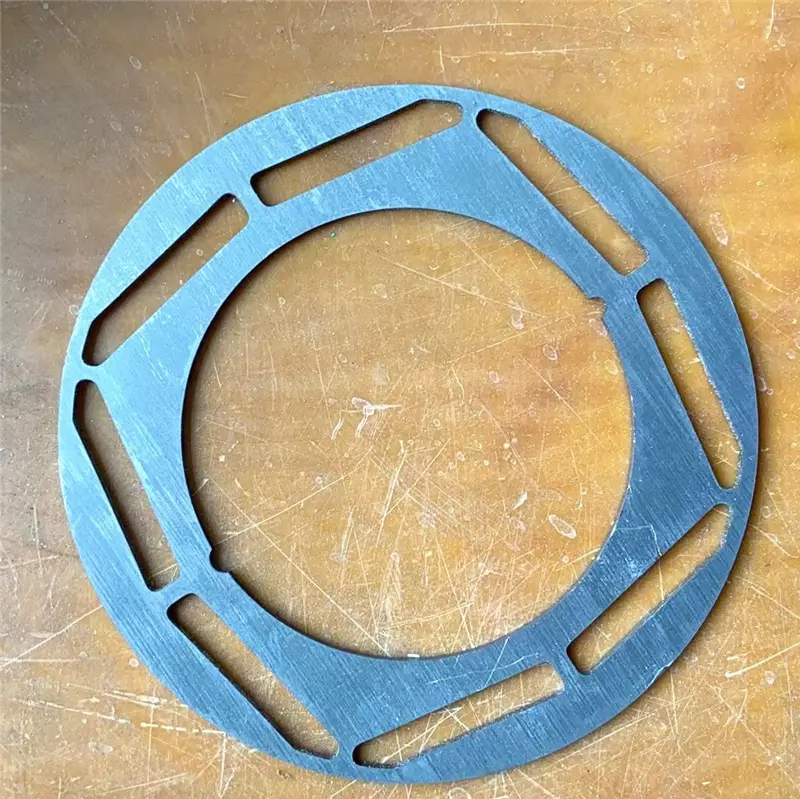

Motor stator and rotor Core
